Stock #  ON-2301

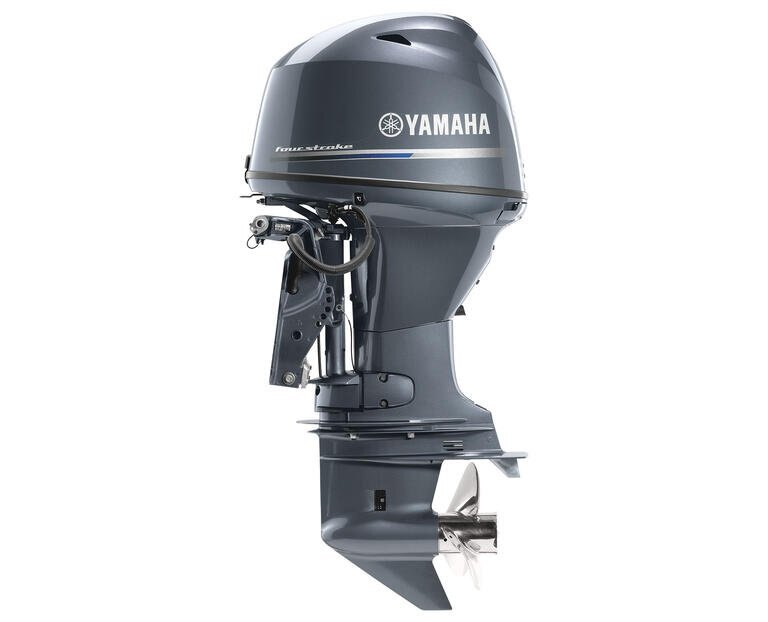

Yamaha T60LC, Grey, 20" Shaft, Electric Start, Power Trim & Tilt, High Thrust

Call for Price
Please Contact
Overview

Need 60 horses and a little extra push? The T60 High Thrust is designed to bring you added torque for more burly craft, like pontoon boats and heavy sailboats. And because it's a Yamaha 4-stroke, it's clean, reliable, and efficient, too.



Specifications
Model
F60
Category Name
Outboard Engines
Year
2025
Sale Type
New
Manufacturer
Yamaha
Vin
ETA April 2026
Color
Grey
Class
M
CodeName
20" Shaft, Electric Start, PTT
Model Code
T60LC - High Thrust
Titlestatus
CLEAN
Unitcondition
EXCELLENT
engine
Cooling
Water/Thermostatic Control
Exhaust
Through Prop
Ignition
TCI microcomputer
Starting
Electric
RPM Range
5,000 - 6,000
Gear Ratio
12.28 (2.33)
Gear Shift
F-N-R
Engine Type
4-cylinder
Lubrication
Wet Sump
Displacement
996cc (57ci)
Bore & Stroke
65x75mm (2.48x2.95in)
Induction System
SOHC
Alternator Output
17 Amps
Compression Ratio
9.5:1
Degree Of Trim/Tilt
-4° through +20°/69°
dimensions
Dry Weight
116kg (256lbs)
Shaft Length
20"
highlights

Yamaha T60LC, Grey, 20 Shaft, Electric Start, Power Trim & Tilt, High ThrustRESPONSIVE POWER

The overhead camshaft design efficiently exchanges intake and exhaust gases for responsive power and fuel efficiency.

Yamaha T60LC, Grey, 20 Shaft, Electric Start, Power Trim & Tilt, High ThrustEasy Handling

The award-winning Multi-Function Tiller Handle (optional) makes operating your High Thrust easy and comfortable.

key features
  • Ideal choice: The large-diameter, low-pitch propellers are designed for Yamaha's high-thrust outboards, making them the ideal choice for kicker or pontoon applications.
  • More reverse thrust: Our unique dual-thrust propellers are designed to redirect the exhaust flow away, thereby reducing cavitation. This feature provides up to 60% more thrust in reverse.
  • Multi-function tiller handle: Optional on F25 through F115, the multi-function tiller handle gives you fingertip control of starting, shifting, steering and throttle.



fuel and lubrication
Oil Capacity
2L (2.1 qt)
Recommended Oil
Yamalube 4-M FC-W 10W-30 or 20W-40
Recommended Fuel
Regular Unleaded (Minimum Pump Octane 87)
features and benefits

IDEAL CHOICE

The large-diameter, low-pitch propellers are designed for Yamaha's high-thrust outboards, making them the ideal choice for kicker or pontoon applications.

MORE REVERSE THRUST

Our unique dual-thrust propellers are designed to redirect the exhaust flow away, thereby reducing cavitation. This feature provides up to 60% more thrust in reverse.

MULTI-FUNCTION TILLER HANDLE

Optional on F25 through F115, the multi-function tiller handle gives you fingertip control of starting, shifting, steering and throttle.

ULTRA-LOW EMISSIONS

All Yamaha four strokes exceed federal EPA 2006 emission requirements. The F60 and up have earned a CARB three-star rating for ultra-low emissions.
