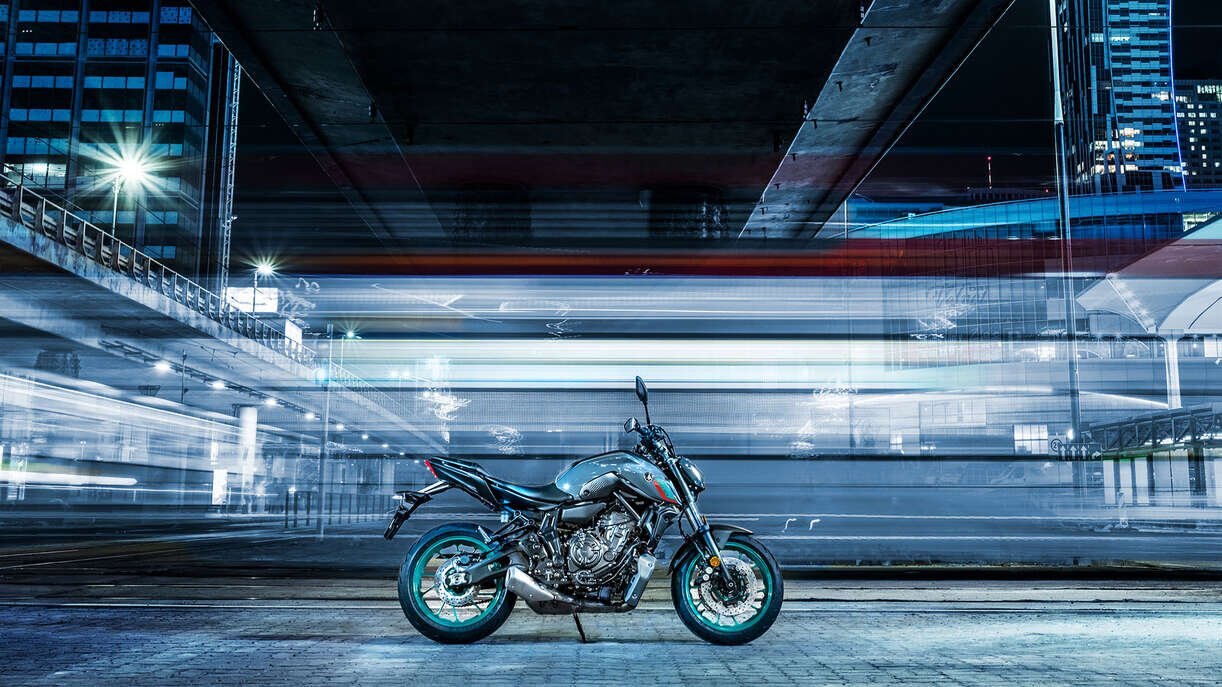

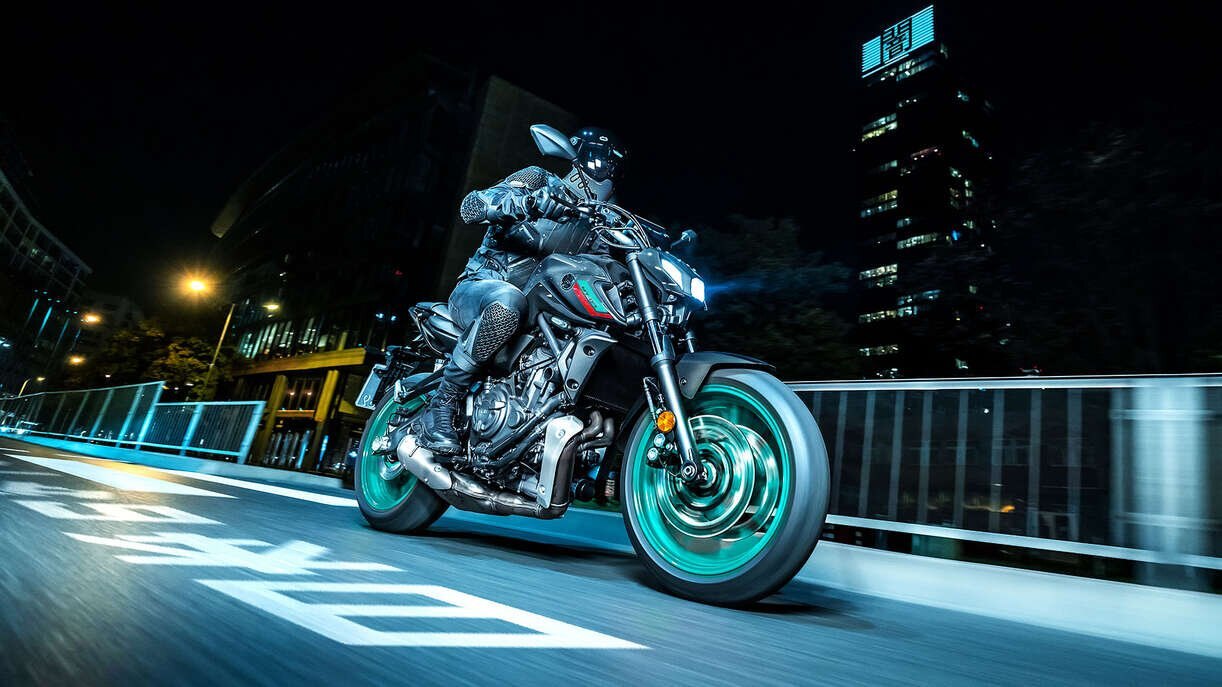

2023 Yamaha MT-07 Team Matte Raven Black

Inspired by Japanese subculture and created by some of the most visionary designers in the business, the Yamaha MT-07 marked the real beginning of Yamaha’s “hyper naked” segment when it arrived in 2014. The 2023 MT-07 represents the progressive evolution of Yamaha’s popular naked middleweight, reinforcing the core values of this outstandingly successful and much-loved motorcycle.  ...

Overview

Inspired by Japanese subculture and created by some of the most visionary designers in the business, the Yamaha MT-07 marked the real beginning of Yamaha’s “hyper naked” segment when it arrived in 2014. The 2023 MT-07 represents the progressive evolution of Yamaha’s popular naked middleweight, reinforcing the core values of this outstandingly successful and much-loved motorcycle.



Specifications

Model
MT
Year
2023
Sale Type
New
Manufacturer
Yamaha
Quantity
0
Manufacturer Qty
0
Color
Matte Raven Black
Engine Size
689
WIDTH
745mm (29.3")
ENGINE
Liquid-cooled, DOHC, 8-valves (4-valves/cylinder), inline twin cylinder
HEIGHT
1,090mm (42.9")
LENGTH
2,085mm (82.1")
WET WEIGHT
183 kg (403 lb.)
LUBRICATION
Wet sump
SEAT HEIGHT
805mm (31.7")
RAKE / TRAIL
24.5┬░ / 90mm
TIRES (REAR)
180/55ZR17
TRANSMISSION
6-speed
FUEL CAPACITY
14 litres (3.1 imp. gallons)
TIRES (FRONT)
120/70ZR17
BORE AND STROKE
80 x 68.6 mm
GROUND CLEARANCE
140 mm (5.5")
COMPRESSION RATIO
11.5:1

key features

KEY FEATURES

  • 5-Inch Full-color TFT meter
  • Smartphone connectivity with MyRide app
  • Next-generation body design with pure MT family DNA
  • Distinctive winglet-style air intakes
  • EU5-compliant 689 cc crossplane-technology CP2 engine
  • Maximum torque of 49.4 ft-lb produced at 6,500 rpm
  • 298 mm dual front brake discs
  • Inverted LCD spot colour instruments



highlights

PREMIUM STYLING2023 Yamaha MT 07 Team Matte Raven Black

The 2023 MT-07 styling reflects the ongoing evolution of the MT family The LED headlight assembly creates a signature front face, complemented by more attractive LED turn signals, and fuel tank covers with sculpted air ducts to give the MT-07 an aggressive appearance.

689 CC CP2 ENGINE 2023 Yamaha MT 07 Team Matte Raven Black

The EU5-compliant, 689 cc twin-cylinder CP2 engine features an optimized air intake duct design and fuel injector settings, as well as a 2-into-1 exhaust to provide a more linear engine response and high-torque throughout the RPM's.

ADVANCED BRAKING SYSTEM2023 Yamaha MT 07 Team Matte Raven Black

Equipped with a high-spec front braking system, the MT-07 features a front 298 mm dual brake rotors giving more stopping power and greater controllability and a 245 mm rear disc which improves performance, particularly in wet conditions.

features and benefits

ENGINE

  • EU5-compliant, 689 cc twin-cylinder CP2 engine
  • Smooth torque curve for thrilling acceleration and excellent top speed
  • Maximum torque produced at just 6,500 rpm
  • Maximum power at 9,000 rpm
  • 270-degree crank gives an uneven firing sequence with a distinct exhaust note that emphasizes the feeling of torque during acceleration.

CHASSIS

  • Diamond-type, high tensile steel frame
  • Engine is stressed member of chassis
  • 41 mm conventional fork with 130 mm (5.1") of wheel travel
  • Adjustable link-type Monocross rear suspension with 130 mm (5.1") of wheel travel
    • Adjustable for spring preload and rebound
  • Standard ABS
  • 298 mm front brake discs (from 282 mm in 2020)
  • Lightweight, cast aluminum 10-spoke wheels
  • Tapered aluminum handlebar (32 mm wider than 2020)
  • LED headlight and taillight
  • LED turn signals

DETAILS

  • Next-generation body design with pure MT family DNA
  • Distinctive winglet-style air intakes
  • LED projector headlight with signature Y-shape icon
  • EU5-compliant 689 cc crossplane-technology CP2 engine
  • Maximum torque of 49.4 ft-lb produced at 6,500 rpm
  • Inverted LCD spot colour instruments
  • LED turn signals

engine

ENGINE
Liquid-cooled, DOHC, 8-valves (4-valves/cylinder), inline twin cylinder
FINAL_DRIVE
"O"-ring chain
LUBRICATION
Wet sump
DISPLACEMENT
689cc
TRANSMISSION
6-speed
FUEL_DELIVERY
Mikuni 38 mm dual bore throttle body F.I.
MAXIMUM_TORQUE
6.9 kg-m (50 ft-lbs.) @ 6,500 rpm
BORE_AND_STROKE
80 x 68.6 mm
COMPRESSION_RATIO
11.5:1
IGNITION_/_STARTING
TCI / Electric
ESTIMATED_FUEL_CONSUMPTION┬▒
24.5 kpl / 69.2 mpg (Imp.)

chassis

TIRES_(REAR)
180/55ZR17
BRAKES_(REAR)
245mm disc / single piston caliper / ABS equipped
TIRES_(FRONT)
120/70ZR17
BRAKES_(FRONT)
Dual 282mm discs / 4-piston calipers / ABS equipped
SUSPENSION_(REAR)
Adjustable link Monocross / 130mm (5.1") wheel travel
SUSPENSION_(FRONT)
41mm fork / 130mm (5.1") wheel travel

critical data

WIDTH
745mm (29.3")
HEIGHT
1,090mm (42.9")
LENGTH
2,085mm (82.1")
COLOUR(S)
Team Yamaha Blue Cyan Storm Matte Raven Black
WHEELBASE
1,400mm (55.1")
WET_WEIGHT
183 kg (403 lb.)
SEAT_HEIGHT
805mm (31.7")
RAKE_/_TRAIL
24.5┬░ / 90mm
FUEL_CAPACITY
14 litres (3.1 imp. gallons)
GROUND_CLEARANCE
140 mm (5.5")
